Hybrid Inverter

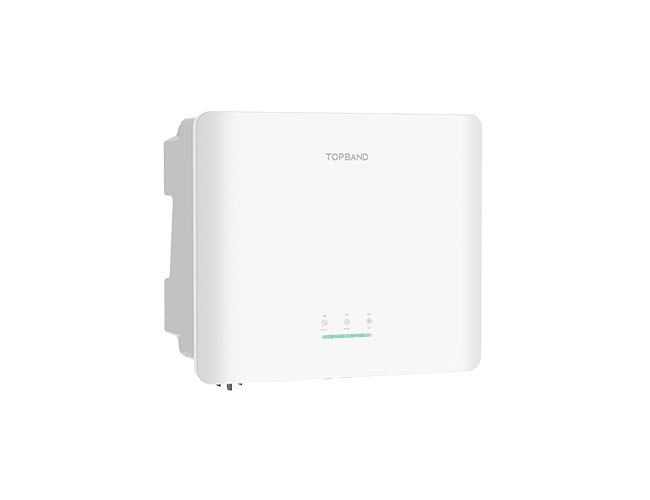

Hybrid Inverter 6kW

Single-phase | 6kW

• On grid: 6kW.

• Back up: 5kW.

• Input voltage: 40~60Vdc.

• 2 MPPT trackers, 9kW max.

• UPS level switching <10ms.

• Support Intelligent shutoff.

• IP class: IP65.

• DC Surge class 2  protection. DC ARC protection.

Contact Sales Data Download
Hybrid Inverter 6kW
Related Products Specifications Parameter Overview
Overview

Topband TBE series inverter can meet the needs of grid-connected and off-grid systems at the same time.  It can not only realize grid-connected and off-grid functions but also realize bidirectional control of electric energy.

Parameter
Project

ModelP1-6000HI

Input data (PV)

Max. recommended PV power9000W

Max. DC voltage600V

Start voltage58V

Nominal voltage360V

MPPT voltage range60V~550V

Strings per MPPT tracker2

Max. short-circuit current per MPPT trackers23A

Output data (AC)

AC nominal power6000W

Max. AC apparent power6000VA

Nominal AC voltage220V/230V/240V

AC grid frequency50/60Hz

Max. output current27.3A

Adjustable power factor0.8leading…0.8lagging

THDi
<3%



Specifications
