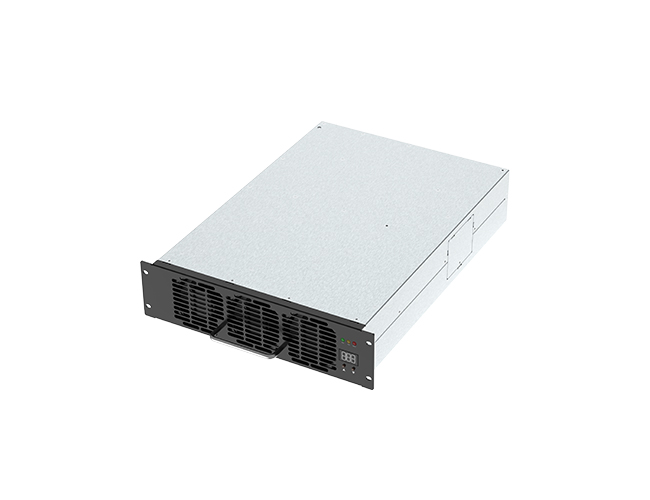

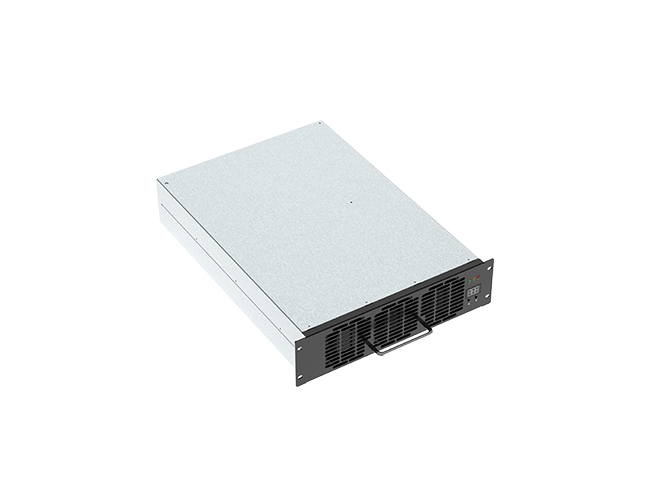

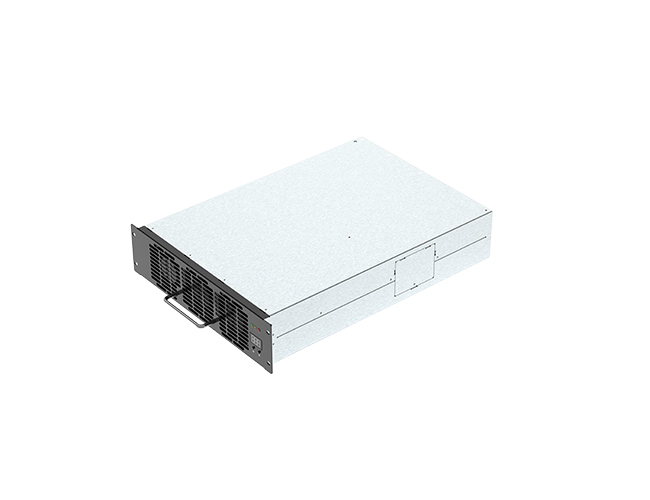

Charging Module 40kW
  • Charging Module 40kW
  • Charging Module 40kW
  • Charging Module 40kW
  • Charging Module 40kW

EV Charging Module

Charging Module 40kW

LiPePO4 | Wide Range

• Wireless charging.

• 2.5 hours double fast charging.

• BMS protection.

• PV charge with MPPT tracker.

• Full compatibility with iPhone,iPad,Mac, Android.

• LiPePO4 battery with 2000-2500+ cycles life.

Contact Sales Data Download
Charging Module 40kW
Related Products Specifications Parameter Overview
Overview

Local gluing not only saves dust-proof cotton and exhaust fans in the design of charging piles but also can reliably and continuously run for a long time without maintenance in various harsh environments such as dust, salt spray, and condensation.

Parameter
Project

ModelP1-TR100040

Data

Capacity40KW

Input voltage260Vac~485Vac, Three-phase without neutral

Maximum Input Current80A

Grid Frequency45Hz~65Hz

Power Factor≥0.98(over half load)

Max. efficiency>95%

THD<5%(over half load)

Data

Regulated Output Voltage Adjust Range
200Vdc-1000Vdc

Constant Power Voltage 300Vdc-1000Vdc

Output Current0-133.3A

Output Current Limit1-133.3A Continuous adjustable

Output Voltage Ripple facto(25℃)<1%

Current Unbalance<±5%

Voltage stablized Accuracy<±0.5%



Specifications
